Find the Maximum A Posteriori Estimation

Source: R/gipsmult_find_MAP.R
find_MAP.Rd

Use one of the optimization algorithms to find the permutation that maximizes a posteriori probability based on observed data. Not all optimization algorithms will always find the MAP, but they try to find a significant value.

Usage

find_MAP(
  g,
  max_iter = NA,
  optimizer = NA,
  show_progress_bar = TRUE,
  save_all_perms = FALSE,
  return_probabilities = FALSE
)

Arguments

g

Object of a gipsmult class.

max_iter

The number of iterations for an algorithm to perform. At least 2. For optimizer = "BF", it is not used; for optimizer = "MH", it has to be finite; for optimizer = "HC", it can be infinite.

optimizer

The optimizer for the search of the maximum posteriori:

  • "BF" (the default for unoptimized g with perm size <= 9) - Brute Force;

  • "MH" (the default for unoptimized g with perm size > 10) - Metropolis-Hastings;

  • "HC" - Hill Climbing;

  • "continue" (the default for optimized g) - The same as the g was optimized by (see Examples).

See the Possible algorithms to use as optimizers section below for more details.

show_progress_bar

A boolean. Indicate whether or not to show the progress bar:

  • When max_iter is infinite, show_progress_bar has to be FALSE;

  • When return_probabilities = TRUE, then shows an additional progress bar for the time when the probabilities are calculated.

save_all_perms

A boolean. TRUE indicates saving a list of all permutations visited during optimization. This can be useful sometimes but needs a lot more RAM.

return_probabilities

A boolean. TRUE can only be provided only when save_all_perms = TRUE. For:

  • optimizer = "MH" - use Metropolis-Hastings results to estimate posterior probabilities;

  • optimizer = "BF" - use brute force results to calculate exact posterior probabilities.

These additional calculations are costly, so a second and third progress bar is shown (when show_progress_bar = TRUE).

To examine probabilities after optimization, call get_probabilities_from_gipsmult().

Value

Returns an optimized object of a gipsmult class.

Details

find_MAP() can produce a warning when:

  • the optimizer "hill_climbing" gets to the end of its max_iter without converging.

  • the optimizer will find the permutation with smaller n0 than number_of_observations

Possible algorithms to use as optimizers

For every algorithm, there are some aliases available.

  • "brute_force", "BF", "full" - use the Brute Force algorithm that checks the whole permutation space of a given size. This algorithm will find the actual Maximum A Posteriori Estimation, but it is very computationally expensive for bigger spaces. We recommend Brute Force only for p <= 9.

  • "Metropolis_Hastings", "MH" - use the Metropolis-Hastings algorithm; see Wikipedia. The algorithm will draw a random transposition in every iteration and consider changing the current state (permutation). When the max_iter is reached, the algorithm will return the best permutation calculated as the MAP Estimator. This algorithm used in this context is a special case of the Simulated Annealing the user may be more familiar with; see Wikipedia.

  • "hill_climbing", "HC" - use the hill climbing algorithm; see Wikipedia. The algorithm will check all transpositions in every iteration and go to the one with the biggest a posteriori value. The optimization ends when all neighbors will have a smaller a posteriori value. If the max_iter is reached before the end, then the warning is shown, and it is recommended to continue the optimization on the output of the find_MAP() with optimizer = "continue"; see examples. Remember that p*(p-1)/2 transpositions will be checked in every iteration. For bigger p, this may be costly.

See also

  • gipsmult() - The constructor of a gipsmult class. The gipsmult object is used as the g parameter of find_MAP().

  • plot.gipsmult() - Practical plotting function for visualizing the optimization process.

  • get_probabilities_from_gipsmult() - When find_MAP(return_probabilities = TRUE) was called, probabilities can be extracted with this function.

  • log_posteriori_of_gipsmult() - The function that the optimizers of find_MAP() tries to find the argmax of.

Examples

require("MASS") # for mvrnorm()
#> Loading required package: MASS

perm_size <- 6
mu1 <- runif(6, -10, 10)
mu2 <- runif(6, -10, 10) # Assume we don't know the means
sigma1 <- matrix(
  data = c(
    1.0, 0.8, 0.6, 0.4, 0.6, 0.8,
    0.8, 1.0, 0.8, 0.6, 0.4, 0.6,
    0.6, 0.8, 1.0, 0.8, 0.6, 0.4,
    0.4, 0.6, 0.8, 1.0, 0.8, 0.6,
    0.6, 0.4, 0.6, 0.8, 1.0, 0.8,
    0.8, 0.6, 0.4, 0.6, 0.8, 1.0
  ),
  nrow = perm_size, byrow = TRUE
)
sigma2 <- matrix(
  data = c(
    1.0, 0.5, 0.2, 0.0, 0.2, 0.5,
    0.5, 1.0, 0.5, 0.2, 0.0, 0.2,
    0.2, 0.5, 1.0, 0.5, 0.2, 0.0,
    0.0, 0.2, 0.5, 1.0, 0.5, 0.2,
    0.2, 0.0, 0.2, 0.5, 1.0, 0.5,
    0.5, 0.2, 0.0, 0.2, 0.5, 1.0
  ),
  nrow = perm_size, byrow = TRUE
)
# sigma1 and sigma2 are matrices invariant under permutation (1,2,3,4,5,6)
numbers_of_observations <- c(21, 37)
Z1 <- MASS::mvrnorm(numbers_of_observations[1], mu = mu1, Sigma = sigma1)
Z2 <- MASS::mvrnorm(numbers_of_observations[2], mu = mu2, Sigma = sigma2)
S1 <- cov(Z1)
S2 <- cov(Z2) # Assume we have to estimate the mean

g <- gipsmult(list(S1, S2), numbers_of_observations)

g_map <- find_MAP(g, max_iter = 5, show_progress_bar = FALSE, optimizer = "Metropolis_Hastings")
g_map
#> The permutation ():
#>  - was found after 5 posteriori calculations;
#>  - is 1 times more likely than the () permutation.

g_map2 <- find_MAP(g_map, max_iter = 5, show_progress_bar = FALSE, optimizer = "continue")

if (require("graphics")) {

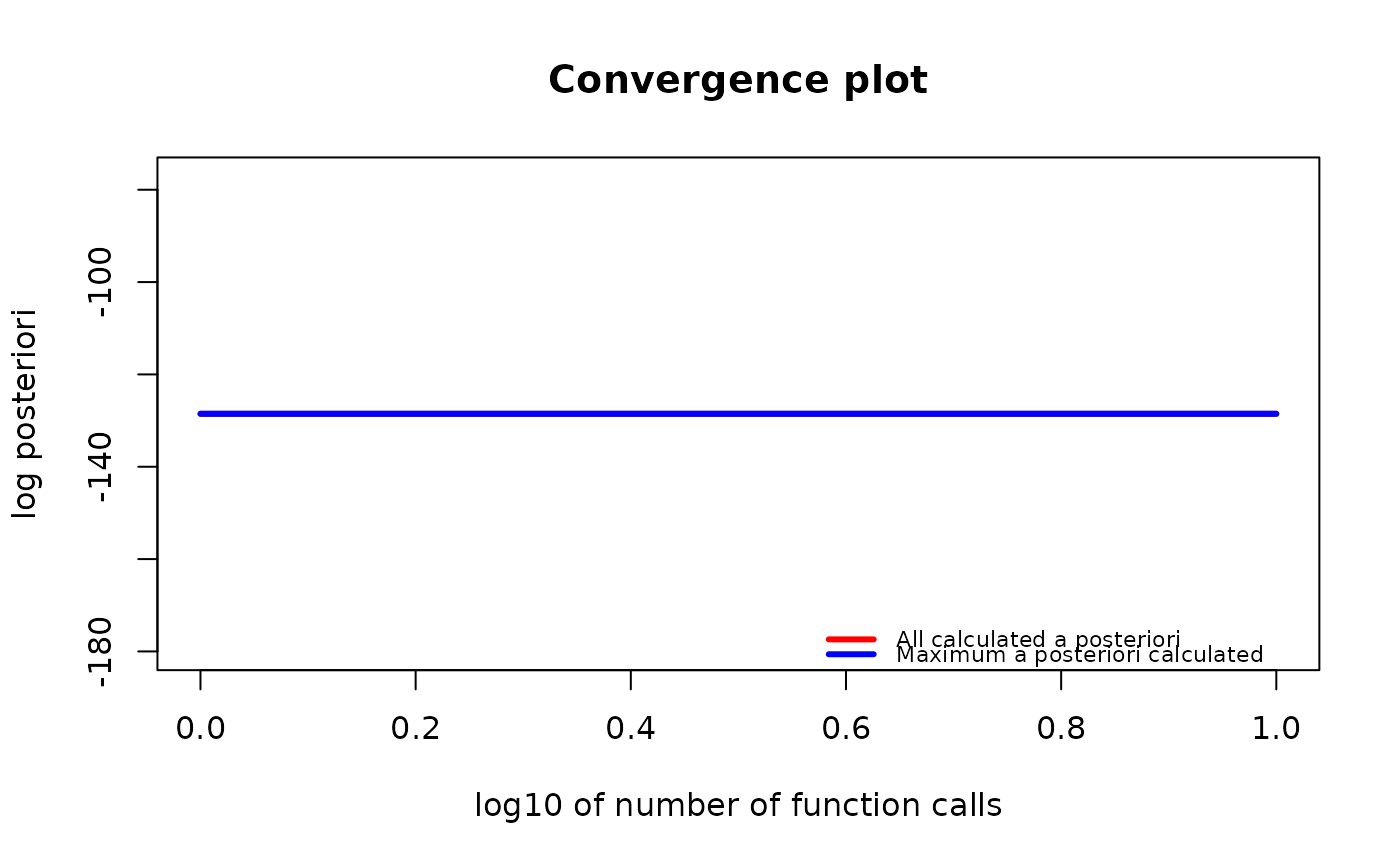

  plot(g_map2, type = "both", logarithmic_x = TRUE)
}


g_map_BF <- find_MAP(g, show_progress_bar = FALSE, optimizer = "brute_force")
